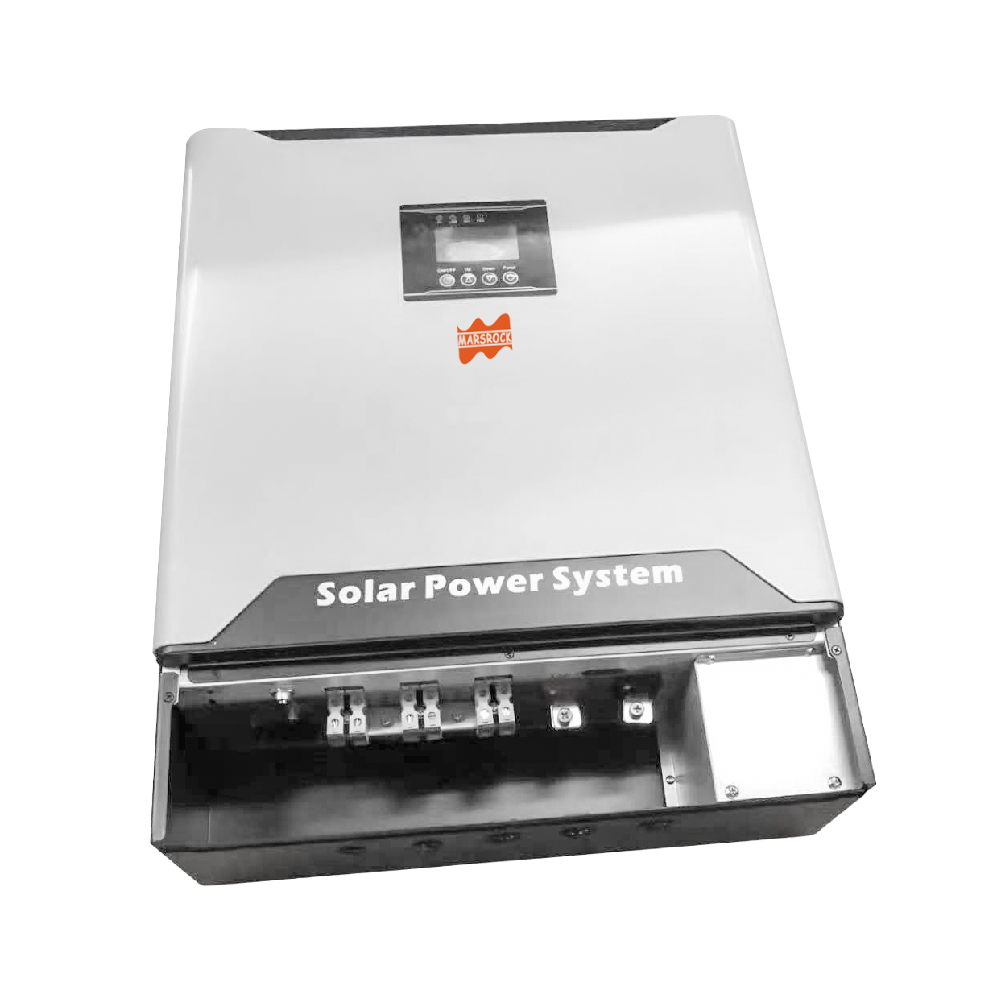

Name: 1000W Wall Mounted Pure Sine Wave Off Grid Inverter 12/24V DC
Brand: Marsrock Energy Storage Website
SKU: SNT-1000W
Availability: InStock
Rating: 5 (1 reviews)

No.SNT-1000W

SNT series off-grid inverter suitable for residential and commercial,Wall mounted convenient installation.Support RS232/RS485/Dry contact communicate,Bringing efficiency and convenience for life.

Rated Power

1000W

Rated voltage

12/24V DC (Auto)

Charge Current

10A MAX

Dimensions:W * D * H (mm)

420*320*122

GET A QUOTE

Add to Quote List View Quote List

Description

Special Reminder:
The indicated global retail price only for your reference. Contact with us to get more discount and its current inventory quantity of us which located in your country.

Feature

With high conversion efficiency, it can ensure the stability and reliability of the output AC power.
Easy to install, wall-mounted installation, does not need to take up additional floor space, suitable for places with limited space.
With over-voltage, under-voltage, over-current and other multiple protection functions, to ensure the safe and stable operation of the system.
Easy to maintain, convenient for users to view and set various parameters.
With waterproof, dustproof, sunscreen and other functions, it can adapt to the use of outdoor environment requirements.

Technical Data

Rated Power		1000W
Battery	Rated voltage	12/24V DC (Auto)
	Charge Current	10A MAX
	Battery Type	Lead-Acid, GEL, Lithium
Grid Input	Voltage Range	@120V(85-138VAC); @230V(170-275VAC)
	Frequency:	45-65Hz
Inverter Output	Voltage Range	110VAC/220VAC; ±5%( Inverter mode)
	frequency	50/60Hz±1%( Inverter mode)
	Output wave	Pure Sine Wave
	Change time	＜10ms(Typical load)
	frequency	＞85%（80% Resistive load）
	overcharge	110-120%/30S；＞160%/300ms；
	Protection function	Battery over-voltage and low-voltage protection, overload protection, short circuit protection, over-temperature protection
System Voltage		@24VDC
Solar Controller	MPPT Voltage	30~150V
	Max PV Power	800W
	Rated charge	30A
	Average charging	28.4VDC
	Floating charge	27.5VDC
	MPPT efficiency	99%
	Operating ambient	-15-+50℃
	Storage ambient	-20 – +50℃
	Operating / storage	0-90% No Condensation
	Dimensions:W * D * H (mm)	420320122
	Packing: W * D * H (mm)	535435172
