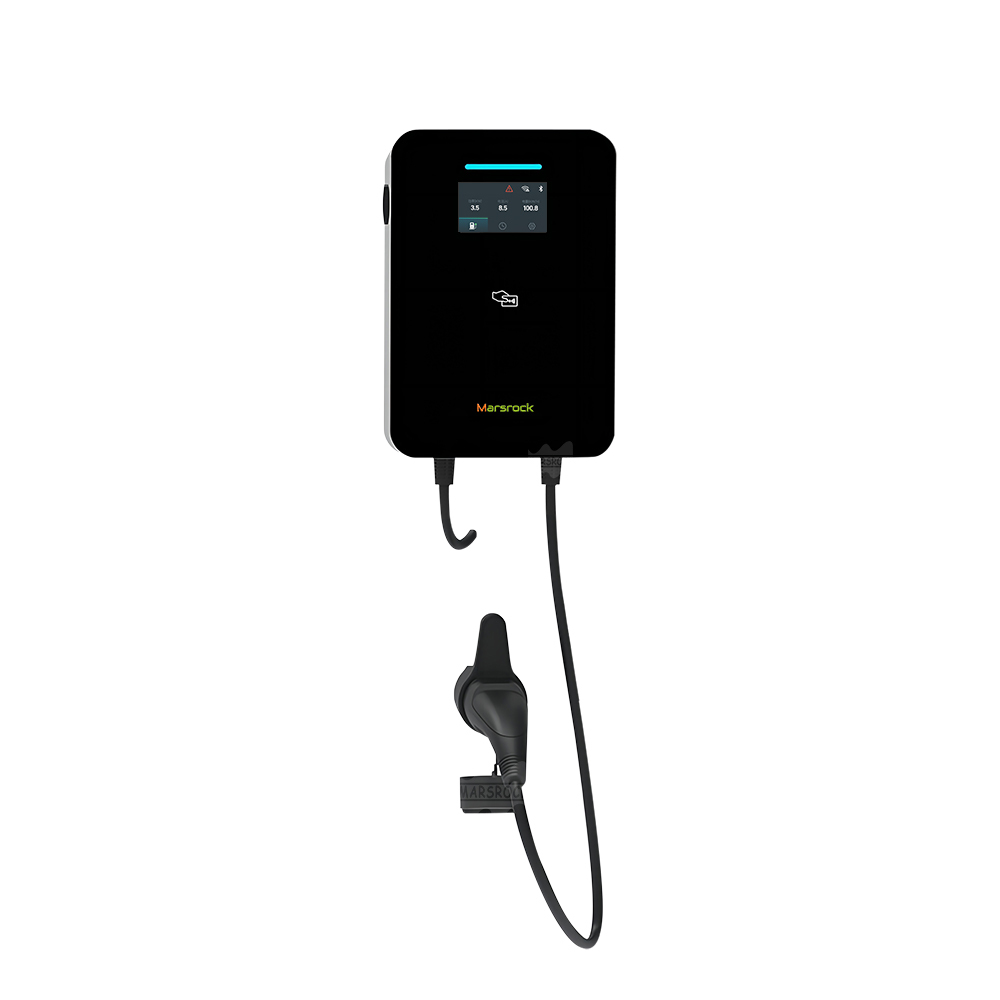

Name: EU 22kW AC MD Series Wall Mounted EV Charger Suitable Household Use
Brand: Marsrock Energy Storage Website
SKU: MD-22000W-16A
Price: 1412.00 USD
Availability: InStock
Rating: 5 (1 reviews)

No.MD-22000W-16A

MD series AC charging gun. IP65 waterproof, wall mounted installation method, does not take up space. LED color screen human-machine interaction interface, can view usage at any time

Working Voltage

AC400V(L1+L2+L3+N+PE)

Rated Power

22kW

Current

16A

Fuselage Size

355*250*93mm

Working Humidity

5%~95% HR

$1412.00

More discount, welcome to contact with us by Email, whatsApp, Wechat!:

Email:marsrock810@marsrock.com.cn

Whatsapp:+86 15359269998

Wechat:xmparty1927

GET A QUOTE

Add to Quote List View Quote List

Description

Special Reminder:
The indicated global retail price only for your reference. Contact with us to get more discount and its current inventory quantity of us which located in your country.

Feature

With LCD color display, showing voltage and remaining capacity, intuitive display of power usage.
Adopt RFID technology, automatic identification, high security performance.
Compact convenient and stylish PC+ABS case, strong waterproof performance, the charging gun has IP66 level waterproof performance, so that users can also be used normally in rainy days.
EVC cables are lightweight, abrasion-resistant, have excellent insulating properties, are cold-resistant, corrosion-resistant, waterproof, and meet international environmental standards.
Support WiFi networking, APP to monitor power consumption at any time, fault reminder to protect the safety of the vehicle.

Technical Specifications

Data	Working Voltage	AC400V(L1+L2+L3+N+PE)
	Frequency	50 Hz
	Rated Power	22kW
	Power Supply Circuit	3-phase
	Current	16A
	IP Degree	IP65
Use Environment	Working Temperature	-30°C~＋50℃
	Working Humidity	5%~95% HR
	The Cooling Way	Natural air cooling
Display function	Display Parameters	Charge voltage, charge current, charge quantity, fault code.
physical Size	Fuselage Size	35525093mm
	lnstallation Mode	Column mounted (floor mounted) or wall mounted Install optional.
Product Performance	Over voltage protection,Undervoltage protection,Overload protection, Leakage Protection,Ground protection,Over temperature protection, Lightning protection,Shortcircuit protection
