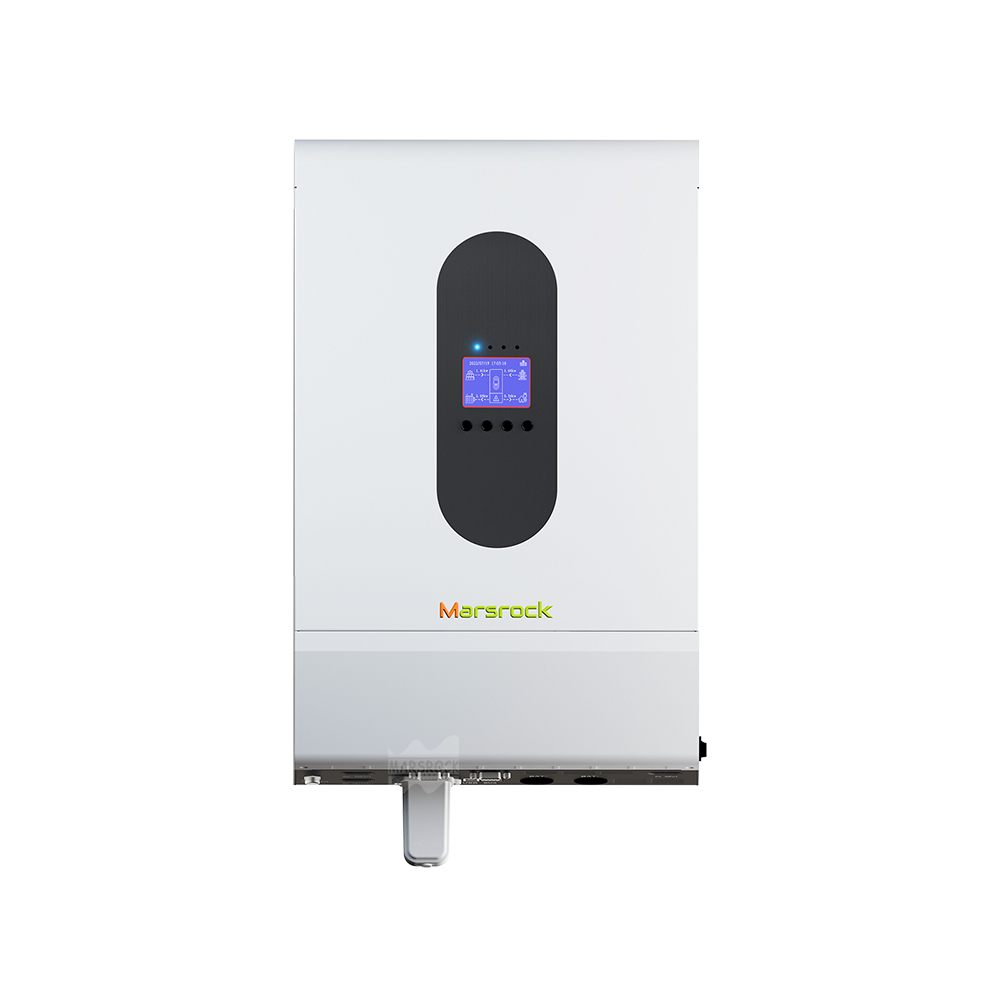

Name: 5kW 220/230/240V Recommended by the Owner Off Grid Inverter with WiFi
Brand: Marsrock Energy Storage Website
SKU: OH 5000W
Availability: InStock
Rating: 5 (1 reviews)

No.OH 5000W

OH Series off grid inverter suitable for home use, the built-in WiFi module can monitor usage at any time, with high efficiency and minimal loss.

Solar Input(Max)

5500W

MPPT Voltage

120V~430V DC

Max input current

80A(1 MPPT string)

Rated ouput power

5000W(Peak:10KVA)

GET A QUOTE

Add to Quote List View Quote List

Description

Special Reminder:
The indicated global retail price only for your reference. Contact with us to get more discount and its current inventory quantity of us which located in your country.

Products

Feature

5000W output power, with more than 98% conversion efficiency, to meet the needs of different families.
Wall-mounted installation, IP65 protection level, to meet the outdoor use conditions.
The whole machine is lightweight, easy to install, friendly display interface, beautiful modelling.
Higher power generation efficiency, saving the cost of power generation and improving the efficiency of power generation.
Higher stability, not only to meet the needs of the grid, but also to provide more stable and safe power for the grid.

Parameter Table

Solar
Solar Input(Max)	5500W
MPPT Voltage	120V~430V DC
Max input current	80A(1 MPPT string)
Output/Input（AC）
Rated ouput power	5000W(Peak:10KVA)
AC Grid	220/230/240V,50/60Hz
Output current	21.7A
AC charging current	21.7A
Max.efficiency	93.60%
Battery
Nominal voltage	48VDC
Max.charging current	80A（PV&AC combined charging）
Communication	RS485/CAN
Protection level	IP20
Communication with portal	WiFi/RS232(optional）
Other
Product Weight:	9.5KG
Product Size:	485×300×120mm
Carton Size:	545×355×180mm
Pallet Size:	1100×730×1700mm
Carton/Pallet:	36
G.W /Pallet:	450KG
Available certificates	CE EMC, LVD
